Projet 1 — Neural Network from Scratch

I implemented a fully functional neural network classifier using only Python and NumPy, without any deep learning frameworks. The network uses a two-layer architecture (input → hidden → output) with configurable activation functions, weight initialization strategies, and optimization algorithms.

Architecture

• Input layer: 2 features
• Hidden layer: 30 neurons (configurable)
• Output layer: 3 classes (softmax)
• Loss function: Cross-entropy
• Optimizers: SGD (mini-batch) and Newton's method

SGD Implementation

The core training loop implements mini-batch stochastic gradient descent with backpropagation:

Show code

while min(loss) > 10 and epoch < epochs:
    for i in range(0, data_arr, batch_size):
        x_train1 = data[i:i + batch_size]
        y_train1 = y[i:i + batch_size]

        # Forward pass
        y_pred = self.call(x_train1)

        # Cross-entropy loss
        delta = 1e-7
        loss[epoch] = -np.sum(y_train1 * np.log(y_pred + delta))

        # Backpropagation
        dz2 = self.s - y_train1
        dw2 = self.hiden_layer1.T.dot(dz2)
        da1 = dz2.dot(self.w2.T)
        dz1 = (1 - self.hiden_layer1) * self.hiden_layer1 * da1
        dw1 = x_train1.T.dot(dz1)

        # Variable learning rate schedule
        if method == 'variable':
            learning_rate = initial_lr * (1 - epoch * 10 / epochs)

        # Weight update
        self.w1 -= learning_rate * dw1
        self.w2 -= learning_rate * dw2
        epoch += 1

Hyperparameter Study

I systematically investigated the impact of key hyperparameters on convergence speed and final accuracy:

Learning Rate

Tested fixed learning rates from 1e-1 to 1e-4. A learning rate of 1e-1 achieved the best convergence performance, while smaller values led to significantly slower training.

LR = 1e-1 — fast convergence

LR = 1e-2 — slower convergence

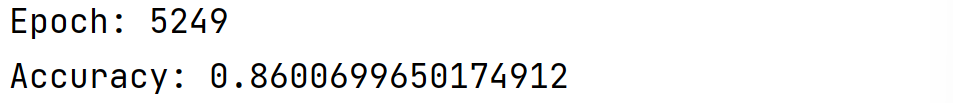

LR = 1e-3 — very slow

Weight Initialization

Compared three initialization strategies: zeros, ones, and random. As expected, random initialization broke symmetry and enabled effective learning, while zero and one initializations failed to differentiate neurons.

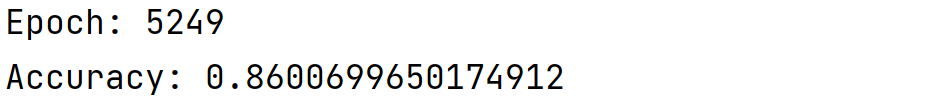

Ones — poor convergence

Zeros — symmetry problem

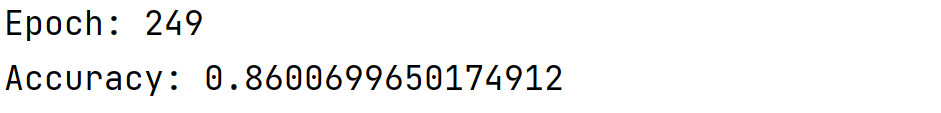

Random — best performance

Batch Size

Tested batch sizes of 32, 64, and 128. Larger batches led to slower convergence per epoch but smoother loss curves, while smaller batches introduced more noise but updated weights more frequently.

Batch = 32 — more noise

Batch = 64 — balanced

Batch = 128 — smoother

Activation Functions

Compared ReLU, Sigmoid, and Tanh. ReLU suffered from "dead neurons" due to negative input values in the dataset. Sigmoid outperformed Tanh for this classification task.

Network Depth

Extended the baseline 2-layer network to a 6-layer deep network (NN_add_layer.py). The deeper architecture showed improved capacity for complex decision boundaries, though with increased risk of overfitting.

2-layer network (baseline)

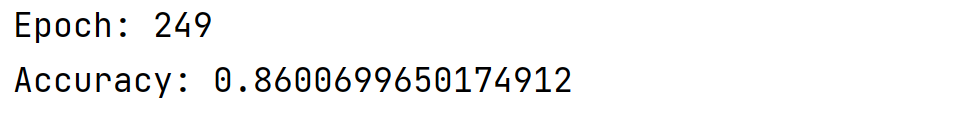

6-layer network (deeper)

Newton's Method

I also implemented Newton's method for weight updates, which uses second-order information (Hessian matrix) to accelerate convergence. While computationally more expensive per iteration, it demonstrates faster convergence in regions where the Hessian is well-conditioned.

# Newton's method weight update
dw1 = gradient_w1
hessian1 = compute_hessian_w1()
hessian_inv1 = np.linalg.inv(hessian1)
self.w1 -= learning_rate * hessian_inv1.dot(dw1)

dw2 = gradient_w2
hessian2 = compute_hessian_w2()
hessian_inv2 = np.linalg.inv(hessian2)
self.w2 -= learning_rate * hessian_inv2.dot(dw2)

3D Visualization

To understand the learned decision function, I visualized the network output as a 3D surface plot over the 2D input feature space, revealing how the classifier partitions the data into three distinct regions.
